REQUIRED PARTS

• 12675 - Temperature sensor

BEFORE YOU START

Before you start, make sure the device is turned off and disconnected! Remove the housing

PROCEDURE

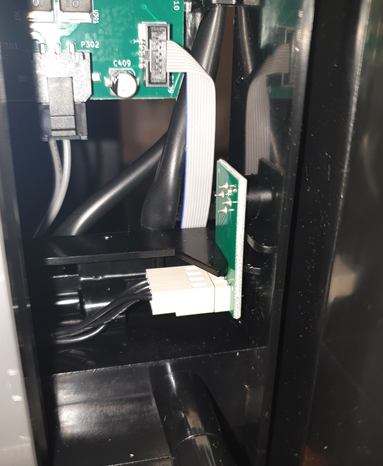

• Locate the temperature sensor in the structure right and rotate the temperature sensor 90°.
• Remove the temperatyre sensor from the structure right.

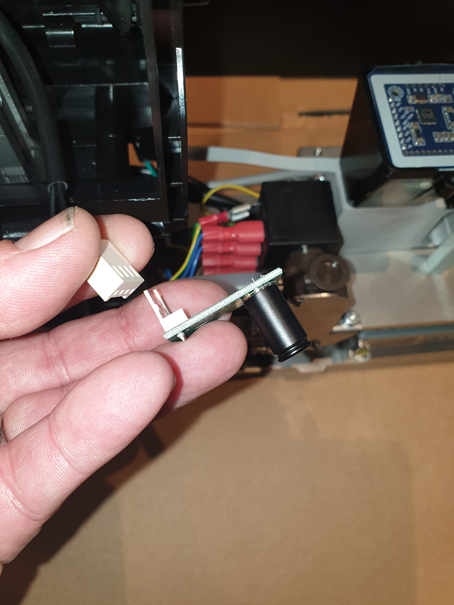

• Gently unlug the protection board from the temperature sensor.

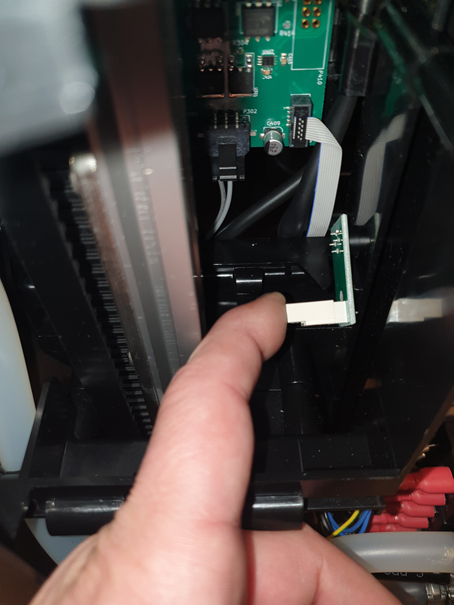

• Plug in the new temperature sensor onto the protection board.
• Place the new temperature sensor in the structure right and rotate the temperature sensor 90° to lock it in place.
• Close the housing
